260x70mm-5050 LED 28PCS
LED Module -70mm
Quantity
5050 LED 28 in 1 PCB Kit + Lens, power range 30W-60W design suitable for street lighting, high bay lighting, flood lighting etc.
✔️ 250-260 lm/W high efficiency 5050 LED
✔️ Type I, II, II-M, II-M(Vertical), III, III-M, IV, V, 30°, 60°, 90°
✔️ 94~98% high transmittance lens
✔️ Passed EN62471
✔️ 30W-60W power range
✔️ LM80 Lifetime >108,000 hrs
| Nominal Wattage | 50W |
| Lumen Efficiency | 190Lm/w(±5%) |
| Lens Dimension | 260×70mm |
| LED Quantity | 28pcs 5050 LED |
| Flood light / High bay light lens | 30°, 60°, 90° |
| Street light lens | Type I, II, II-M, III, III-M, IV, V |
| Street light vertical lens | Type II-M (Vertical) |

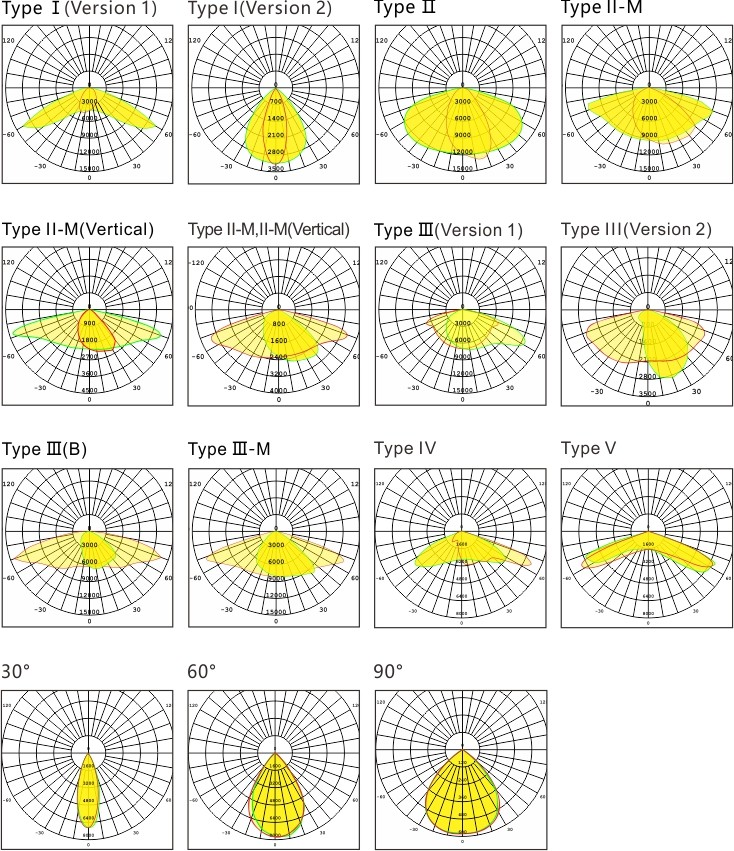

Optical Lens Types & Dimensions

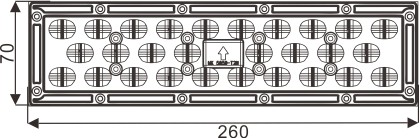

Below are the available optical distribution types and the PCB kit dimensions for your reference.
