240x75mm-5050 LED 28PCS
LED Module -75mm
Quantity
5050 LED 28 in 1 PCB Kit + Lens, power range 30W-60W design suitable for street lighting, high bay lighting, flood lighting etc.
✔️ 250-260 lm/W high efficiency 5050 LED
✔️ 25°, 40°, 60°, 90°, 145x100°, 150x70°, 150x70°(Vertical), Type II, Type II-M, Type IV, Type V
✔️ 94~98% high transmittance lens
✔️ Passed EN62471
✔️ 30W-60W power range
✔️ LM80 Lifetime >108,000 hrs
| Nominal Wattage | 50W |
| Lumen Efficiency | 200Lm/w(±5%) |
| Lens Dimension | 240×75mm |
| LED Quantity | 28pcs 5050 LED |
| Flood light / High bay light lens | 25°,40°,60°,90° |
| Tunnel light lens | 145x100° |
| Street light lens | 150x70°,150x70°(Vertical),Type II,Type II-M,Type IV,Type V |

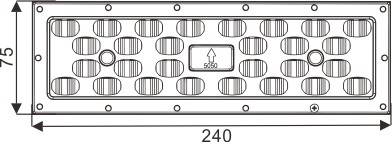

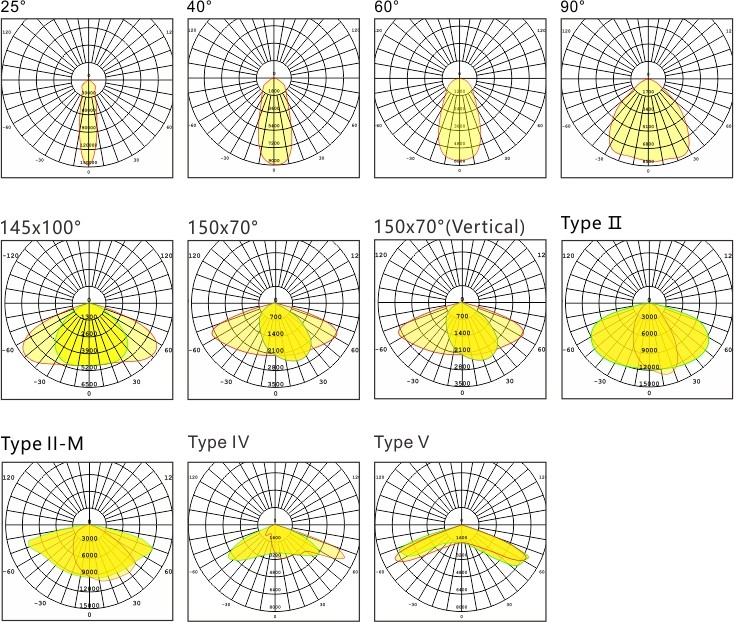

Optical Lens Types & Dimensions
Below are the available optical distribution types and the PCB kit dimensions for your reference.
