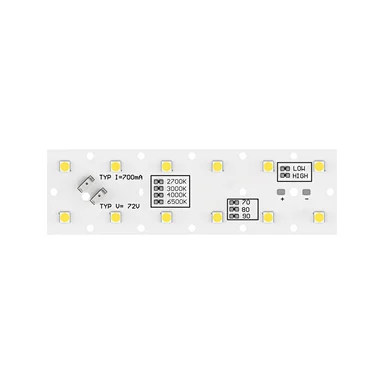

2*6 PCB+LED Module
TL-12-145X44-5050
Constant Color , MacAdams Step 3 Homogeneous illumination
PCB Materiel Aluminum 1.6 mm, Optional Selection
Substrate : ALU/FR4/CEM1/CEM3
PCB Thickness : 1.0/1.6 mm
Copper Weight : 35Um/70Um
Surface Treatment : HASL/OSP
Thermal Conductivity : 1W/1.2W/1.5W/2W
Breakdown voltage : 2000V
PCB Materiel Aluminum 1.6 mm, Optional Selection
Substrate : ALU/FR4/CEM1/CEM3
PCB Thickness : 1.0/1.6 mm
Copper Weight : 35Um/70Um
Surface Treatment : HASL/OSP
Thermal Conductivity : 1W/1.2W/1.5W/2W
Breakdown voltage : 2000V
Quantity
| Overall dimensions, L x W x H, mm | 145*44 |
| Nominal power, W | 50.4 |
| Luminous flux, lm * | 7600 |
| Light output, lm/W* | 149 |
| Supply current, nominal, mA | 700 |
| Voltage, typical, V | 72 |
| LED connection diagram | 12s1p |
| Half-brightness angle of LEDs, deg. | 116 |
| PCB material | Aluminum |
| Power connection | Contact pads |
| Forward voltage drop | 72 |
| Color rendering index, CRI | 70 |
| Correlated color temperature CCT, K | 5000 |
| LEDs | TOCH LIGHTING 5050 |
